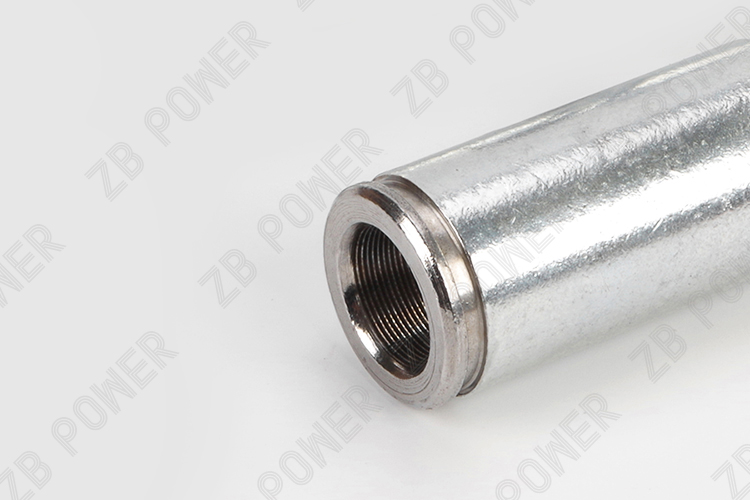

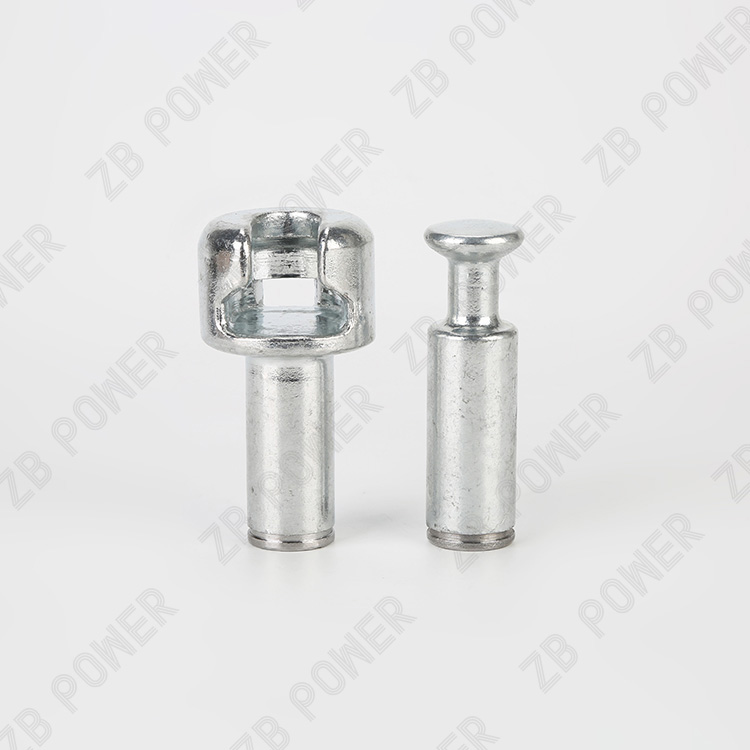

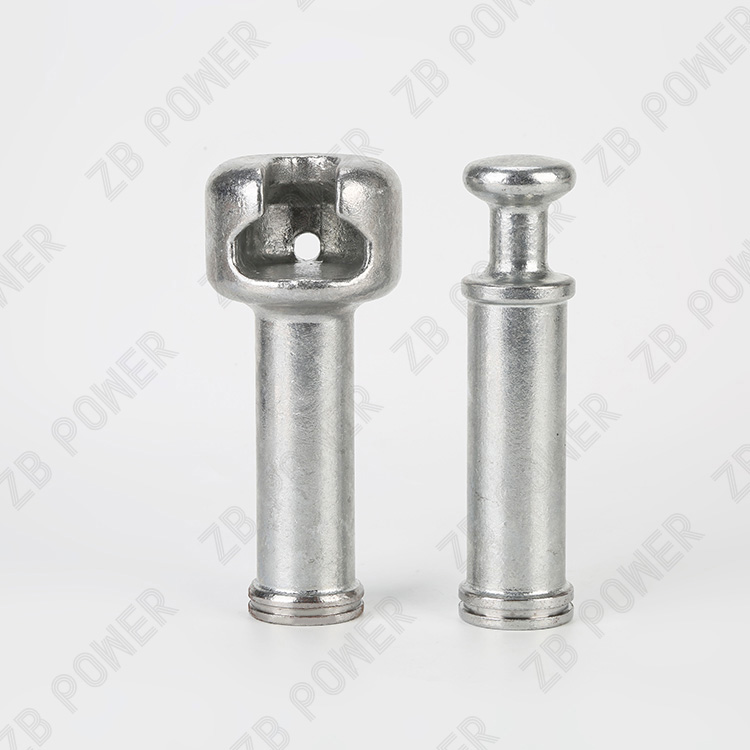

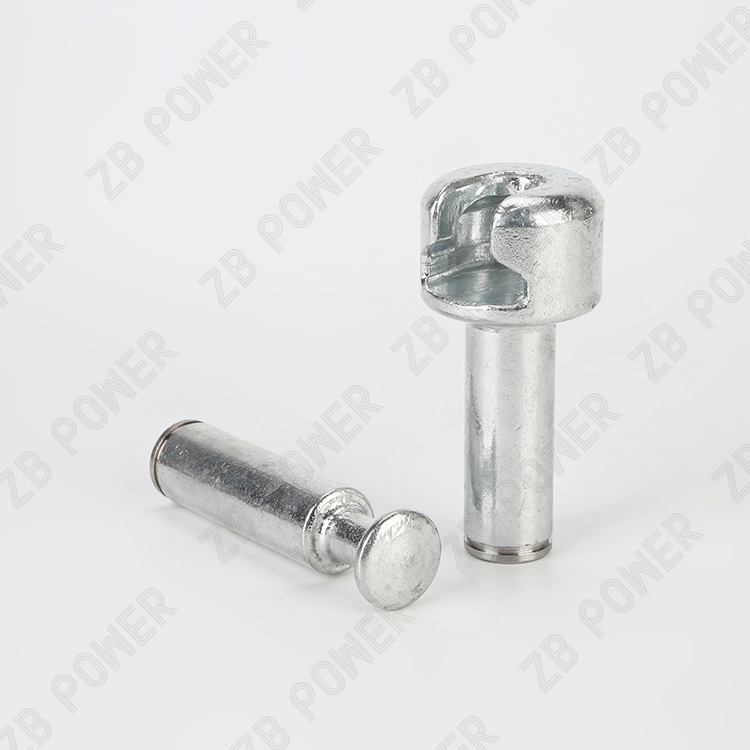

Ball and Socket Fitting

Advantage: this product is made of high quality carbon steel with very stable mechanical properties, processed by mature forging process, high precision CNC lathe and mature hot dip galvanizing process, it has superior mechanical properties and smooth appearance.

Application: ball and socket end fittings are used on composite suspension and tension insulators for A.C. system with a nominal voltage greater than 1kV.

Product Details

Services

Technical Specification

Name

Ball and Socket Fitting

Material

Forged Steel

Surface Treatment

HDG

SML(kN)

40, 70, 100, 120, 160, 210

Inner Diameter in Usual Practice(mm)

13, 16, 18, 24

Designated Size(IEC 60120: 2020)

Ball: 11, 16, 20

Socket: 11, 16A, 16B, 20

Executive Standard

IEC 61466-1: 2016, IEC 60120: 2020, IEC 60383-1:1993

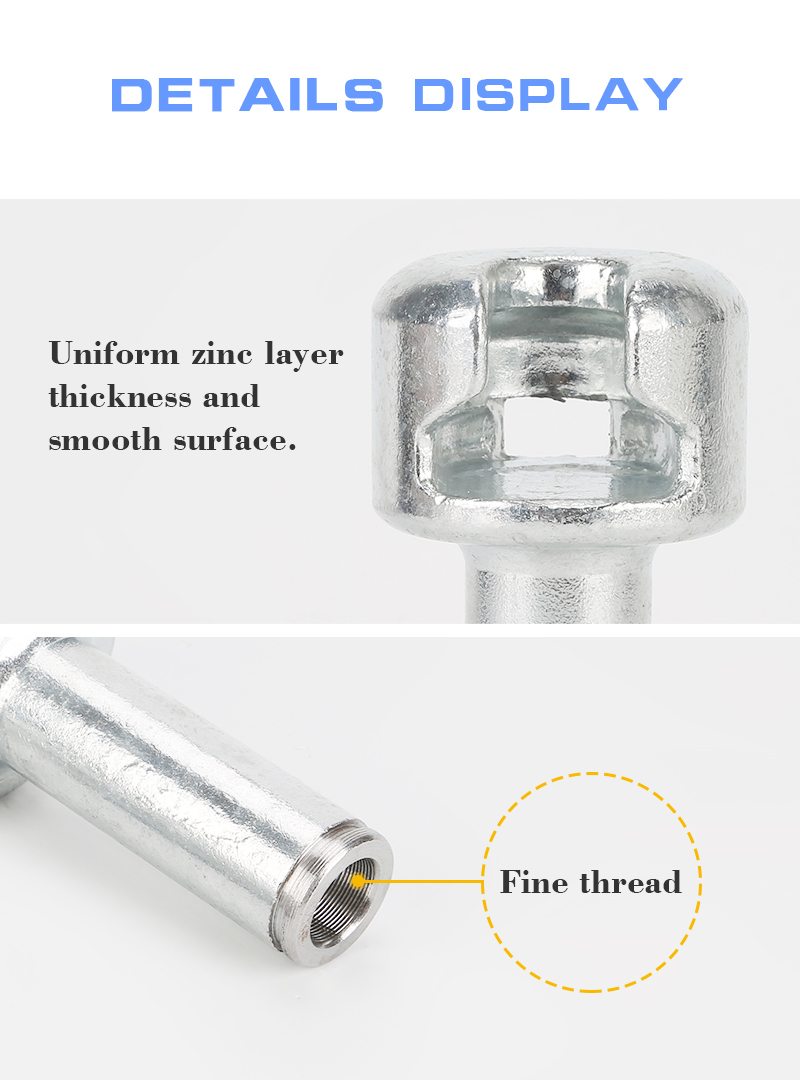

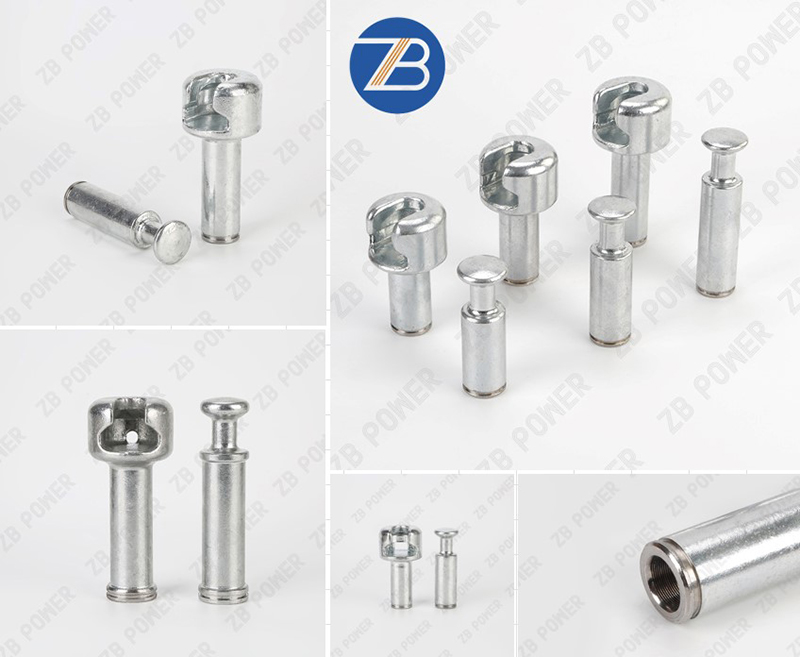

Details Show

Services

1. Fast response within 24 hours.

2. Personalized design and customization.

3. 1 year warranty
